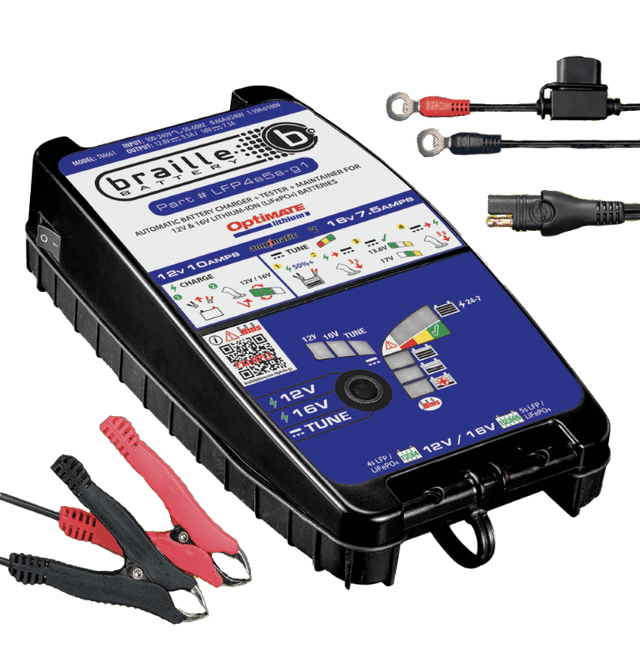

TM-661 Braille 12V 9.5A/16V 7.5A Lithium Battery Charger and Maintainer
is backordered and will ship as soon as it is back in stock.
Description
The Braille Optimate TM661 12V 9.5A/16V 7.5A sealed lithium battery saving charger and maintainer is ideal for 12V/13.2V LiFePO4 / LFP batteries. It features a power reset that rapidly re-energizes the battery and provides stable battery support during ECU programming/troubleshooting. The fully automatic multi-step program brings the battery safely to full charge. Weatherproof battery lead & battery clip set included.
โข Revive low voltage battery safely from 1+ V โข Rebalance Cells for optimal performance โข Tests the battery State of Health (SOH) โข Includes โMaintenance Charger Capabilityโ where the battery voltage is testedย ย ย ย every 30 minutes and the battery is only charged if needed โข They are safe to leave on for prolonged periods โข Eliminates the risk of overcharging while prolonging life of battery
12V / 16V. Selection made when battery disconnected. Selection remains in memory
Protection
16V > 1) Requires manual override (press button for 5s) IF 16V selected and battery voltage below 15V. 2) 12V selected, 16V battery connected > wonโt charge
Charge Amps (Max)
9.5A @ 12V / 7.5A @ 16V
Charge Volt Range
0.5V to 14.4V in 12V mode / 0.5V to 18V in 16V mode
Operation
Fully Automatic
Tune Mode
Selectable during charge mode, if battery SOC โฅ 50%
Tune Power
8.5A @ 13.6V in 12V mode / 7A @ 17V in 16V mode
Use
Indoor use only / IP50 rating
Charge Temperature Range
-4ยฐF/-20ยฐC to 122ยฐF/50ยฐC. No charge delivered if below or above
Range
Input Global / 100-240V 50-60Hz
Style
Case with wall-mounts / wall receiver, IEC-320 C7/8 AC receptacle and removable power cord, AC ON/OFF switch, Pushbutton mode selection, LED display, 6ft / 180cm charge lead ending in SAE connector
Safety
No risk of overcharging. Totally safe for vehicle electronics. Sparks suppressed. Safe for long-term battery maintenance. Automatic shut-down if short-circuited or battery disconnected
Whatโs In The Box
โข Automatic battery charger (TM661) โข Wall storage receiver โข AC cord, with IEC320-C7/8 connector & Type-A plug (TA-31) โข Battery clip set (O-04) โข Battery Harness, fused (O-11)
Fitments
<div class="dynamic-checkout__content" id="dynamic-checkout-cart" data-shopify="dynamic-checkout-cart"> <shopify-accelerated-checkout-cart wallet-configs="[{"supports_subs":true,"supports_def_opts":false,"name":"shop_pay","wallet_params":{"shopId":59377975384,"merchantName":"Sac City Auto Parts ","personalized":true}},{"supports_subs":false,"supports_def_opts":false,"name":"amazon_pay","wallet_params":{"checkoutLanguage":"en_US","ledgerCurrency":"USD","placement":"Cart","sandbox":false,"merchantId":"AD1886AC4TMZU","productType":"PayAndShip","design":"C0002"}},{"supports_subs":true,"supports_def_opts":false,"name":"paypal","wallet_params":{"shopId":59377975384,"countryCode":"US","merchantName":"Sac City Auto Parts ","phoneRequired":false,"companyRequired":false,"shippingType":"shipping","shopifyPaymentsEnabled":true,"hasManagedSellingPlanState":false,"requiresBillingAgreement":false,"gatewayType":"MANAGED","merchantId":"APTUV6FQUJMX2","sdkUrl":"https://www.paypal.com/sdk/js?components=buttons\u0026commit=false\u0026currency=USD\u0026locale=en_US\u0026client-id=AbasDhzlU0HbpiStJiN1KRJ_cNJJ7xYBip7JJoMO0GQpLi8ePNgdbLXkC7_KMeyTg8tnAKW4WKrh9qmf\u0026merchant-id=APTUV6FQUJMX2\u0026intent=authorize","serviceableCountryCodes":["AC","AD","AE","AF","AG","AI","AL","AM","AO","AR","AT","AU","AW","AX","AZ","BA","BB","BD","BE","BF","BG","BH","BI","BJ","BL","BM","BN","BO","BQ","BR","BS","BT","BW","BY","BZ","CA","CC","CD","CF","CG","CH","CI","CK","CL","CM","CN","CO","CR","CV","CW","CX","CY","CZ","DE","DJ","DK","DM","DO","DZ","EC","EE","EG","EH","ER","ES","ET","FI","FJ","FK","FO","FR","GA","GB","GD","GE","GF","GG","GH","GI","GL","GM","GN","GP","GQ","GR","GS","GT","GW","GY","HK","HN","HR","HT","HU","ID","IE","IL","IM","IN","IO","IQ","IS","IT","JE","JM","JO","JP","KE","KG","KH","KI","KM","KN","KR","KW","KY","KZ","LA","LB","LC","LI","LK","LR","LS","LT","LU","LV","LY","MA","MC","MD","ME","MF","MG","MK","ML","MM","MN","MO","MQ","MR","MS","MT","MU","MV","MW","MX","MY","MZ","NA","NC","NE","NF","NG","NI","NL","NO","NP","NR","NU","NZ","OM","PA","PE","PF","PG","PH","PK","PL","PM","PN","PS","PT","PY","QA","RE","RO","RS","RU","RW","SA","SB","SC","SD","SE","SG","SH","SI","SJ","SK","SL","SM","SN","SO","SR","SS","ST","SV","SX","SZ","TA","TC","TD","TF","TG","TH","TJ","TK","TL","TM","TN","TO","TR","TT","TV","TW","TZ","UA","UG","UM","US","UY","UZ","VA","VC","VE","VG","VN","VU","WF","WS","XK","YE","YT","ZA","ZM","ZW"]}}]" access-token="31c8adce8cf2fa79691c9ddf5459f111" buyer-country="US" buyer-locale="en" buyer-currency="USD" shop-id="59377975384" cart-id="ff0695512a8771b17641cf46eea03a72" enabled-flags="["370070f3"]" > <div class="wallet-button-wrapper"> <ul class='wallet-cart-grid wallet-cart-grid--skeleton' role="list" data-shopify-buttoncontainer="true"> <li data-testid='grid-cell' class='wallet-cart-button-container'><div class='wallet-cart-button wallet-cart-button__skeleton' role='button' disabled aria-hidden='true'> </div></li><li data-testid='grid-cell' class='wallet-cart-button-container'><div class='wallet-cart-button wallet-cart-button__skeleton' role='button' disabled aria-hidden='true'> </div></li><li data-testid='grid-cell' class='wallet-cart-button-container'><div class='wallet-cart-button wallet-cart-button__skeleton' role='button' disabled aria-hidden='true'> </div></li> </ul> </div> </shopify-accelerated-checkout-cart> </div>
Your cart
MANUAL G35 or G37. What Will You Choose?
Braille Battery

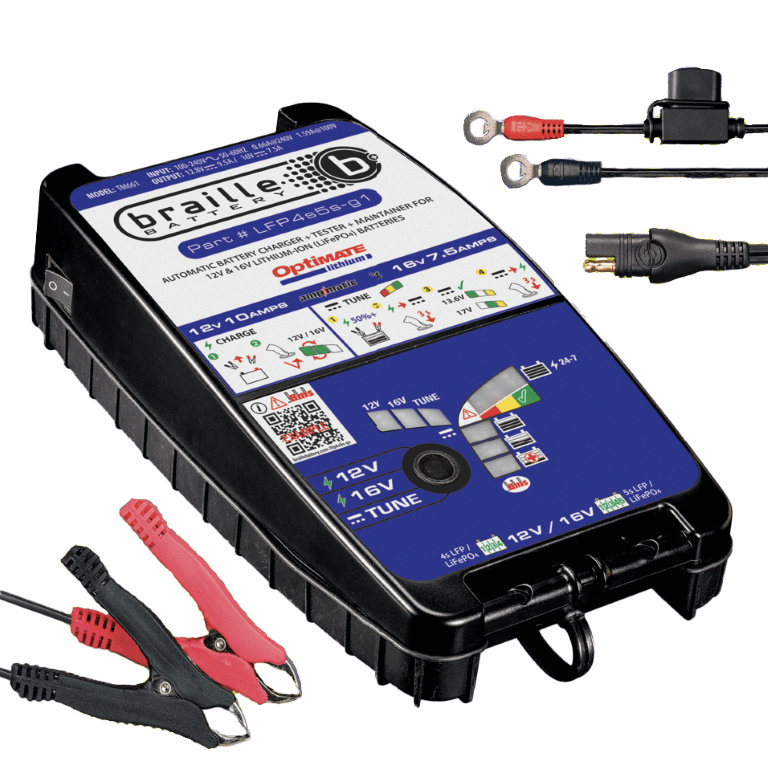

TM-661 Braille 12V 9.5A/16V 7.5A Lithium Battery Charger and Maintainer
